Sub-metering in commercial buildings
-
BMS integration in industrial automation
-
Council or educational facility energy tracking

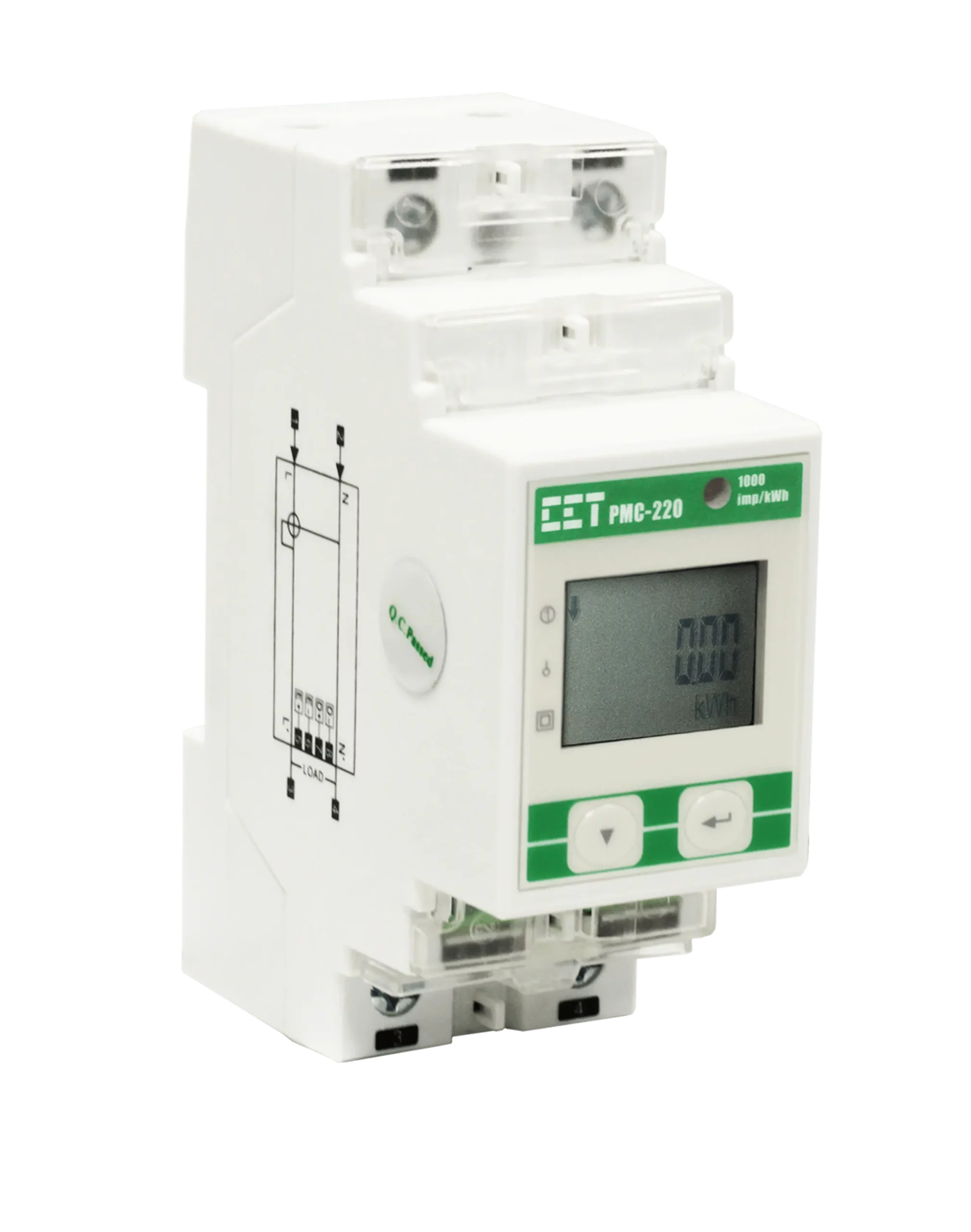

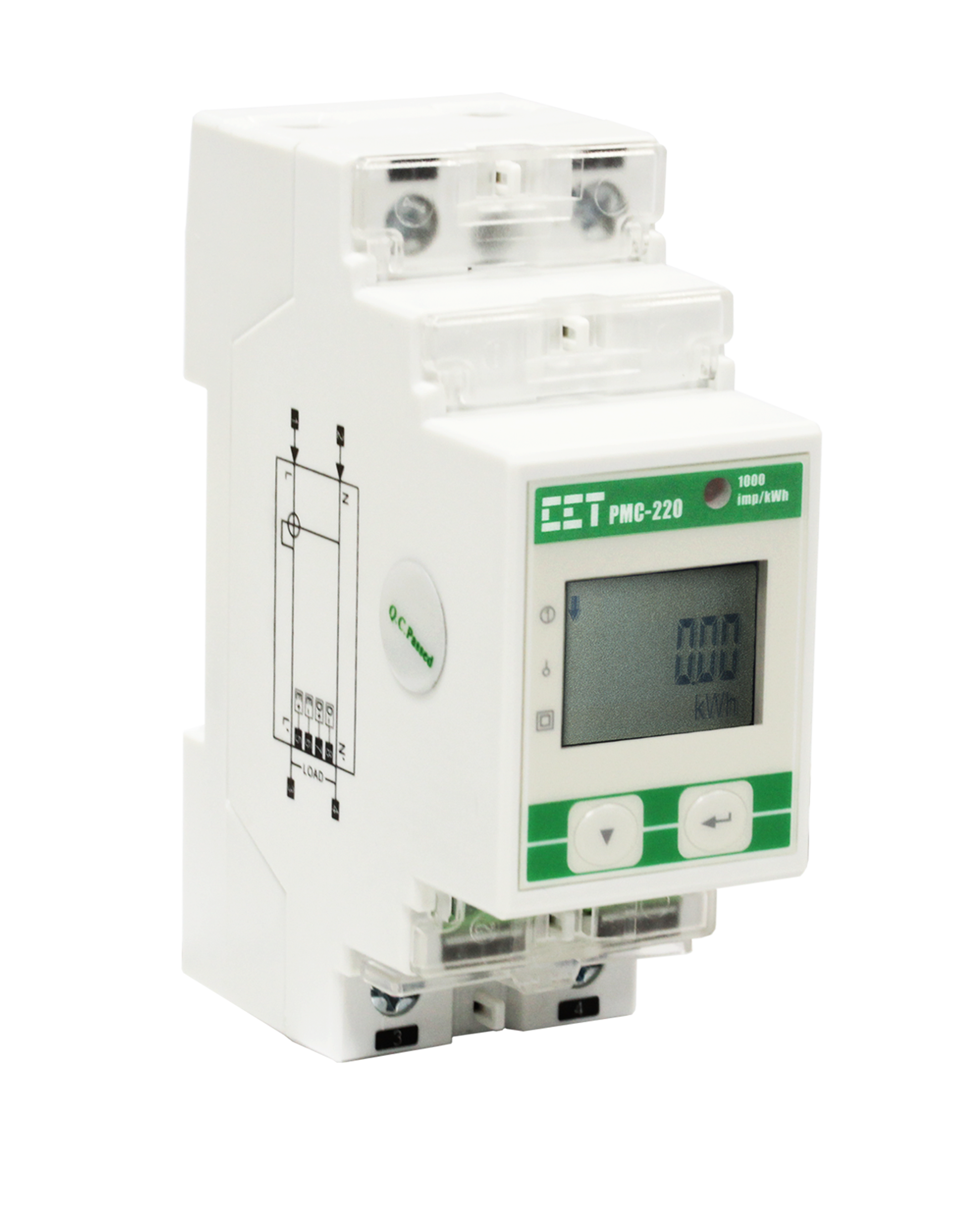

PMC-220 Single-Phase Multifunction Energy Meter
PMC-220 Single-Phase Multifunction Energy Meter
- IEC 62053-21: 2020 Class 0.5 Compliant and NMI M6-1 Class 1 Certified
- Direct Input up to 63A without external CT
- Low Starting Current @ 20mA
- Multifunction measurements
- Voltage, Current, kW, kvar, kVA, PF and Frequency
- kWh and kvarh Imp/Exp/Tot/Net and kVAh
- Device Operating Time (Running Hour)
- Front Panel & Communication Programming Counters

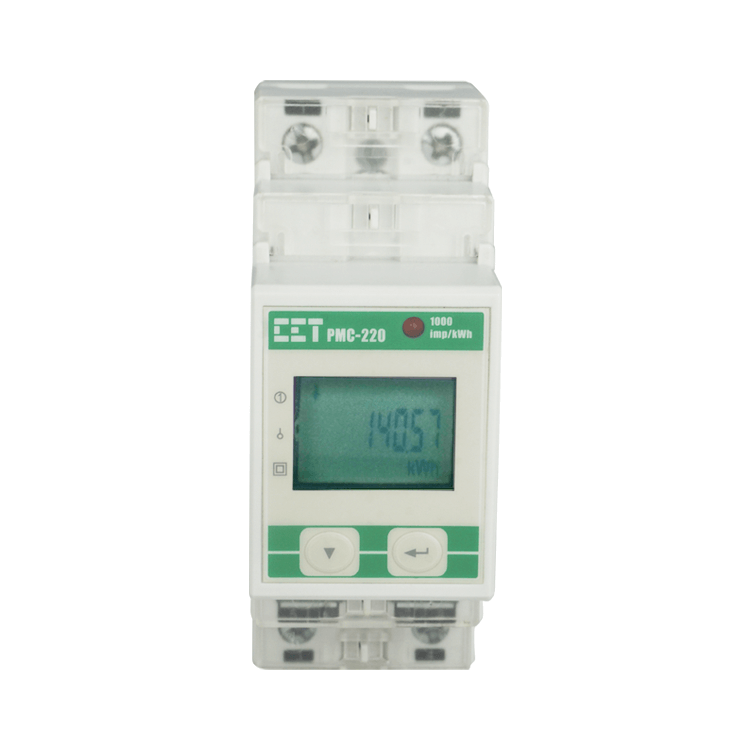

- 8-digit Multifunction LCD Display
- Self-powered, no external control power required
- kWh LED Pulse Output
- Solid State Energy Pulse Output @ 1000 imp/kxh
- Standard RS-485 port with Modbus RTU support

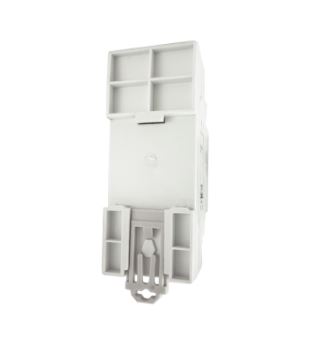

- Easy installation with DIN-Rail mounting, no tools required
The CET PMC-220 Single-Phase Multifunction Energy Meter is designed for the low-voltage energy metering market. It features a DIN-rail mount design, compact construction, 63A direct-connect input, and high-accuracy energy measurement.
The PMC-220 complies with IEC 62053-21:2020 Class 0.5 kWh accuracy standards. It has received a Certificate of Approval from the National Measurement Institute (NMI) of Australia and has been verified by UL in reference to NMI M6-1 Electricity Meters, Part 1: Metrological and Technical Requirements.
Equipped with a standard RS-485 communication port and supporting Modbus RTU protocol, the PMC-220 integrates into intelligent, multifunction monitoring solutions for Energy Management Systems (EMS).
Applications
Features
-
IEC 62053-21 Class 1 Accuracy
-
DIN-rail mounted, 63A direct connection
-
RS-485 Modbus RTU for BMS/SCADA integration
-
Digital Input for status or pulse counting
-
LED energy pulse output
