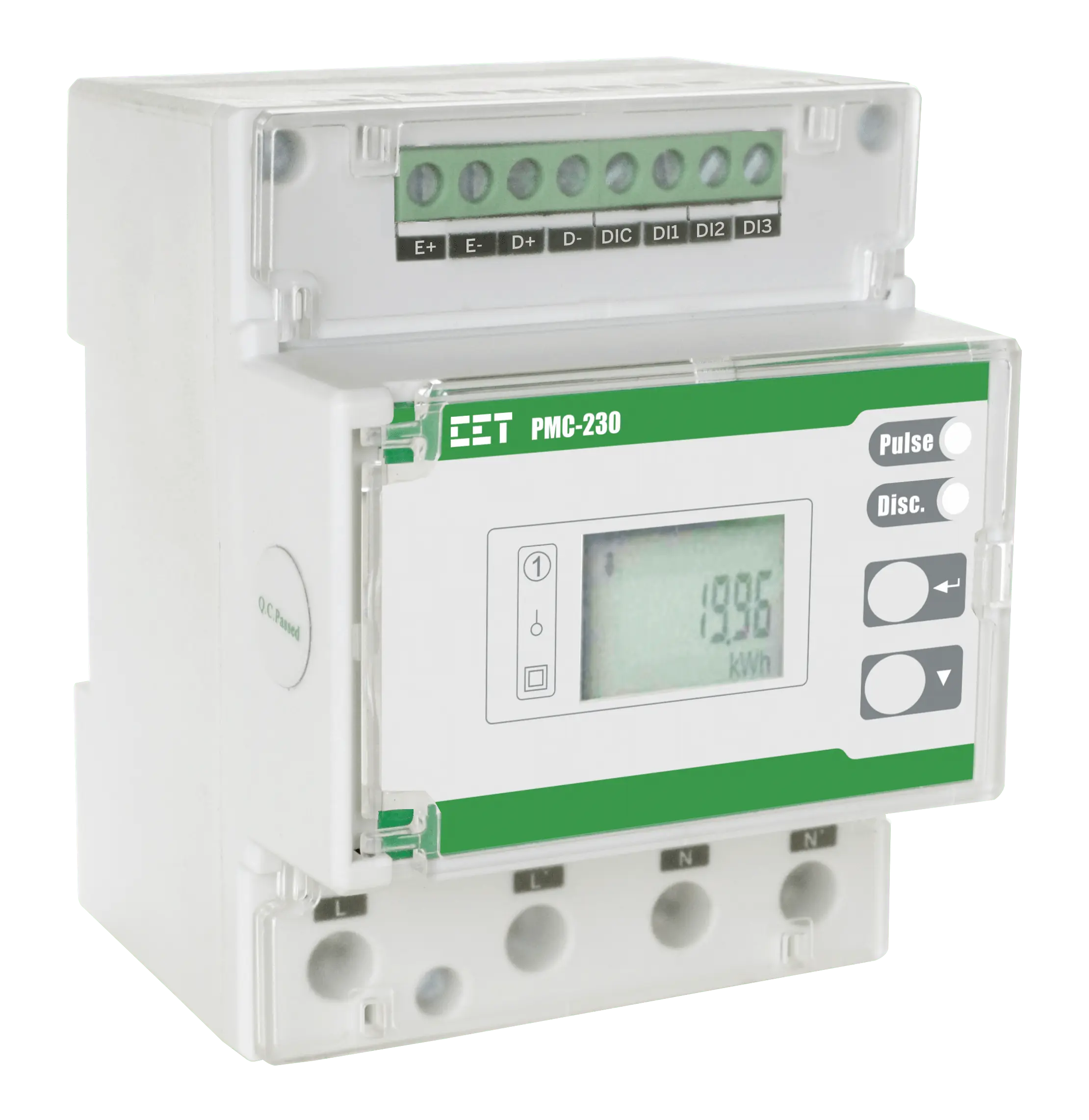

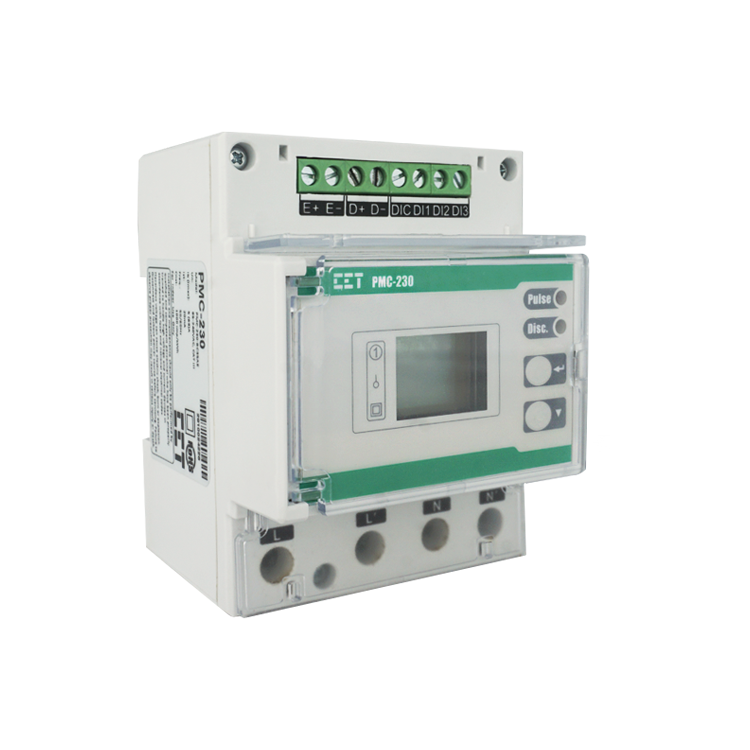

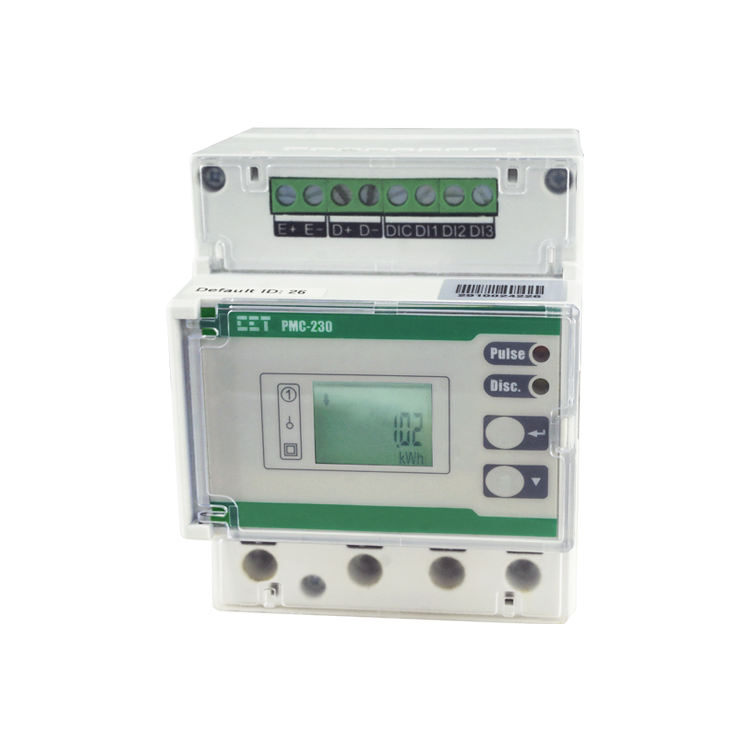

PMC-230-BC35AE Single-Phase Multifunction Energy Meter

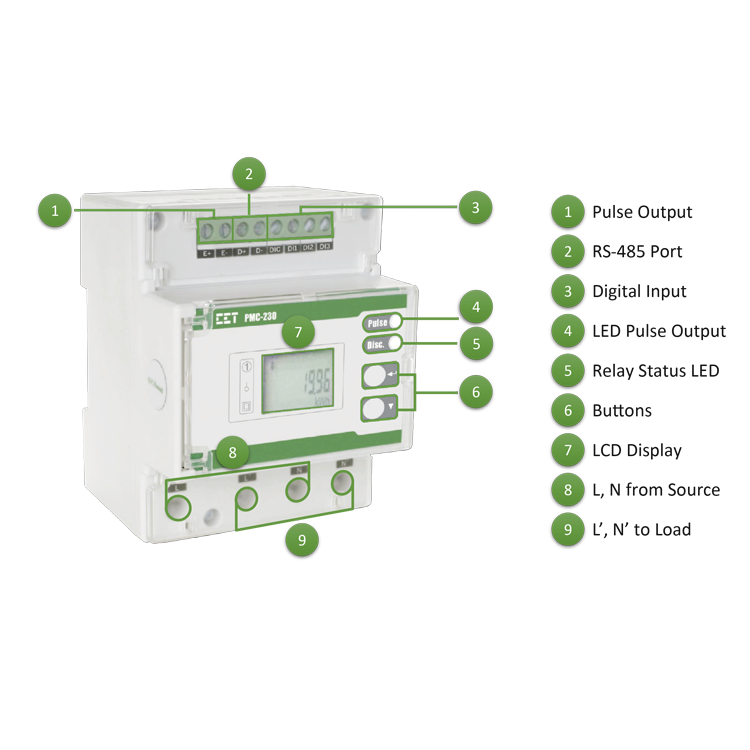

Single-Phase Multifunction Meter is CET’s latest offer for the low voltage energy metering market featuring DIN-Rail submetering, compact construction, 63A direct connect with an internal UC3 Disconnect Relay for compliance with Australia National Electricity Rules (NER). The PMC-230 also complies with the IEC 62053-21 Class 0.5 kWh Accuracy Standard and has received the Certificate of Approval from The National Measurement Institute (NMI M6-1 energy meter) of Australia. With 4MB Log Memory, 3xDI, 1xLED and 1xSS Pulse Output for energy pulsing as well as a RS-485 port supporting Modbus RTU single-phase meter protocol as standard features, the PMC-230 becomes a vital component of an intelligent, multifunction monitoring solution for any Energy Management Systems.

Benefits:

• Internal UC3 Disconnect Relay (NMI Schedule 7.5 compliant)

• Direct connect up to 63A — no external CTs needed

• Modbus RTU via optically isolated RS-485

• 4MB onboard memory for 6-month data logging

• 3x digital inputs for status or pulse input
