- DIN rail mount energy metering
- Industrial and commercial energy monitoring
- Substation, building and factory automation
- Sub-metering
- Power quality monitoring

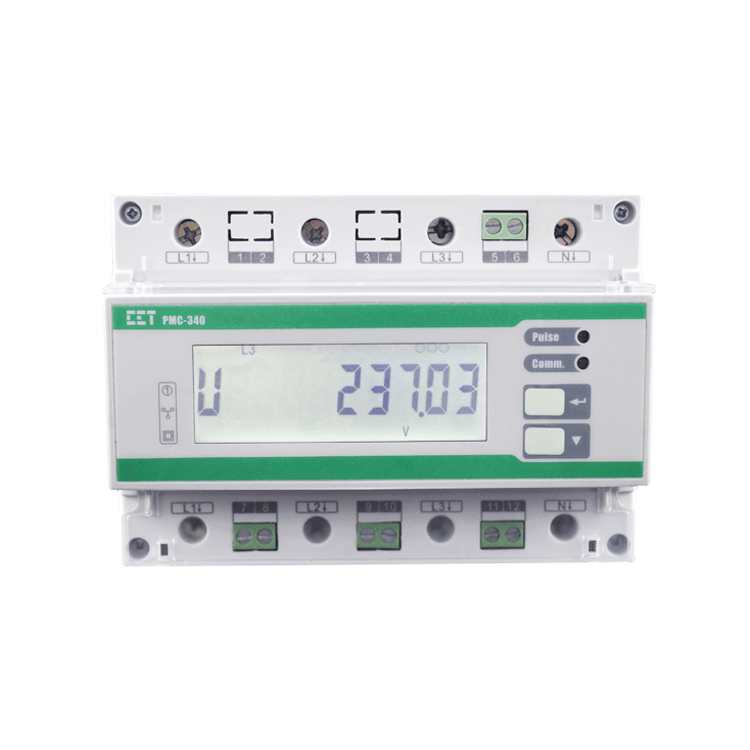

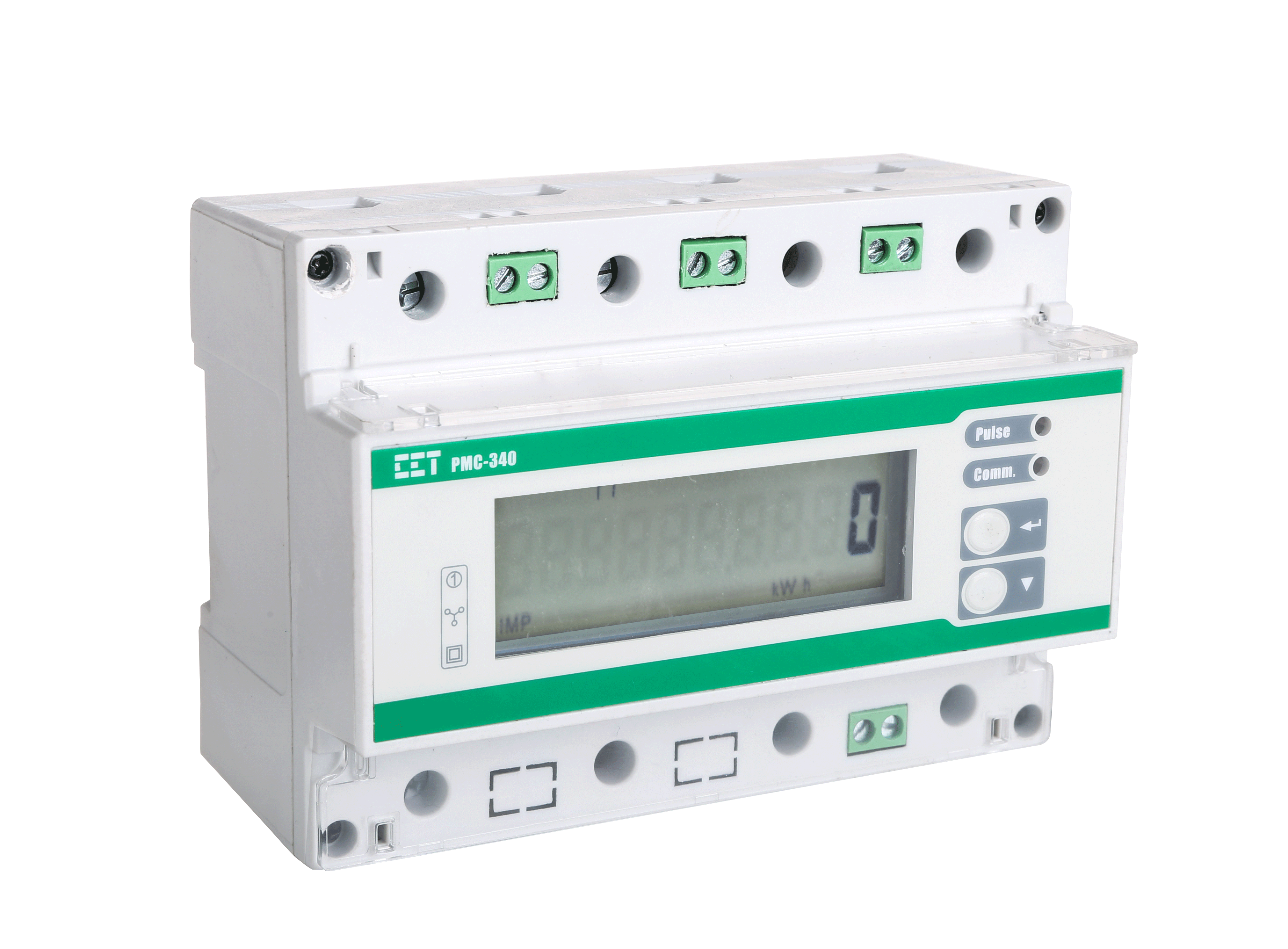

PMC-340A-B Three-Phase Energy Meter
PMC-340A-B Three-Phase Multifunction Energy Meter
- 5A CT input capability

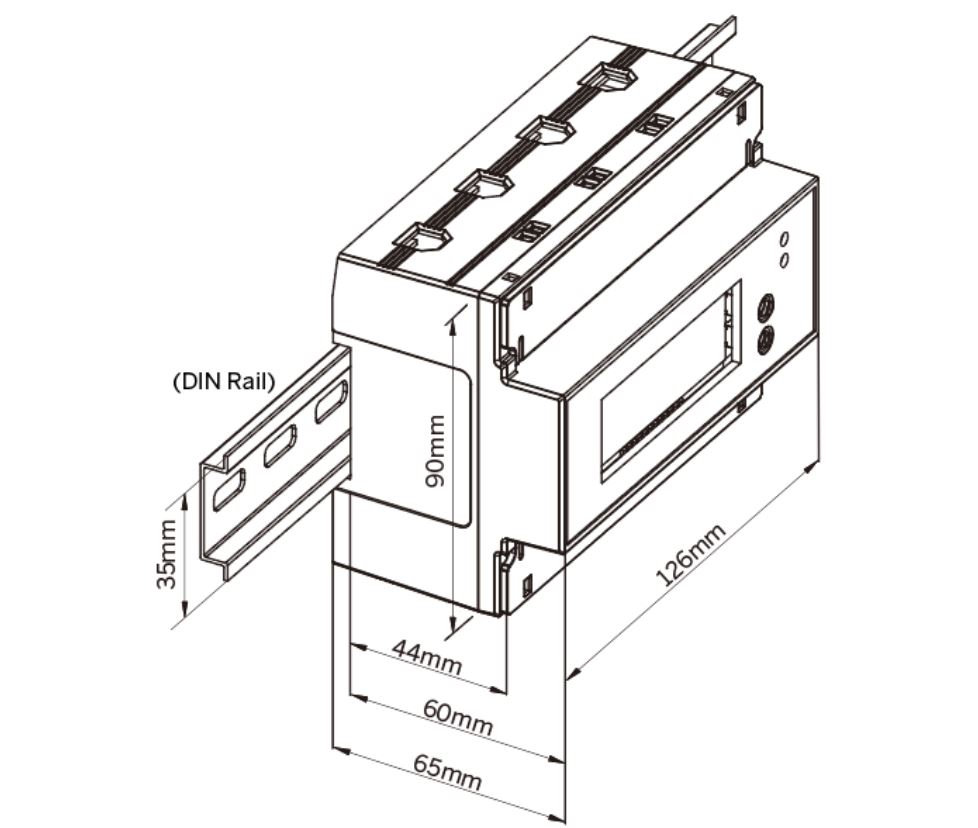

- DIN rail mounting
- Modbus RTU over RS-485
- High accuracy, multifunction true RMS measurements
- Compliant with IEC 62053-21 Class 1 for 100A Direct Input
- Compliant with IEC 62053-22 Class 0.5S for 5A CT Input
- Energy Pulse and Communication Activity LEDs
- Solid State Pulse Output for energy pulsing
- Standard RS-485 port with support for Modbus protocol
The PMC-340-A Digital Three-Phase Energy Meter is CET’s latest offer for the low voltage power/energy metering market featuring DIN rail mount, high accuracy, multifunction true RMS measurements and a large, easy to read LCD display. The PMC-340-A complies with the IEC 62053-21 Class 1 and IEC 62053-22 Class 0.5S kWh Accuracy Standards for 100A Direct Input and 5A CT Input, respectively. The PMC-340-A comes standard with a front panel LCD, Energy Pulse & Comm. Activity LEDs as well as a Solid State Pulse Output for energy pulsing. The standard RS-485 port and Modbus protocol support allows the PMC-340-A to become a vital component of an intelligent, multifunction monitoring solution for any Power and Energy Management Systems
Applications
Features
- 5A CT input capability
- Basic Measurements
- Enhanced Measurements
- Max./Min. Log
- Monthly Energy Log
- Multi-Tariff TOU
- Pulse Outputs,
- Communications
- Real-time Clock
- System Integration
