PMC-352-CA325A7E Three-Phase Energy Meter

PMC-352-CA325A7E Three-Phase Energy Meter | LoRa & Modbus RTU

  • 3-Phase LoRa DIN Energy Meter

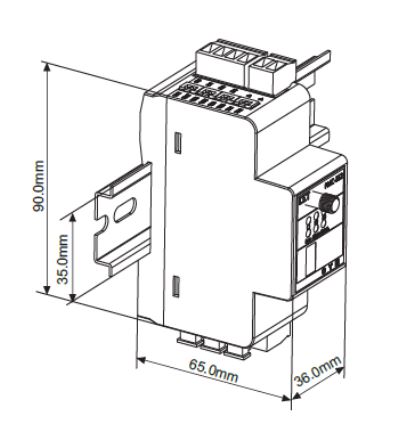

  • Compact DIN design (measuring 36x65x90mm), suitable for space-limited environments
  • 4 x NTC Inputs for temperature monitoring
  • 3 x Digital Inputs (DI) for status monitoring
  • Standard RS-485 port
  • Optionally supports LoRa with Modbus RTU protocol
  • Meets IEC 62053-21 Class 1 accuracy standards
Edge Go

Put this meter online in under 30 minutes
Edge Go reads this meter over its RS-485 port and streams five-minute interval data to WideSky over its own cellular connection. An electrician commissions it from a phone.

See Edge Go →

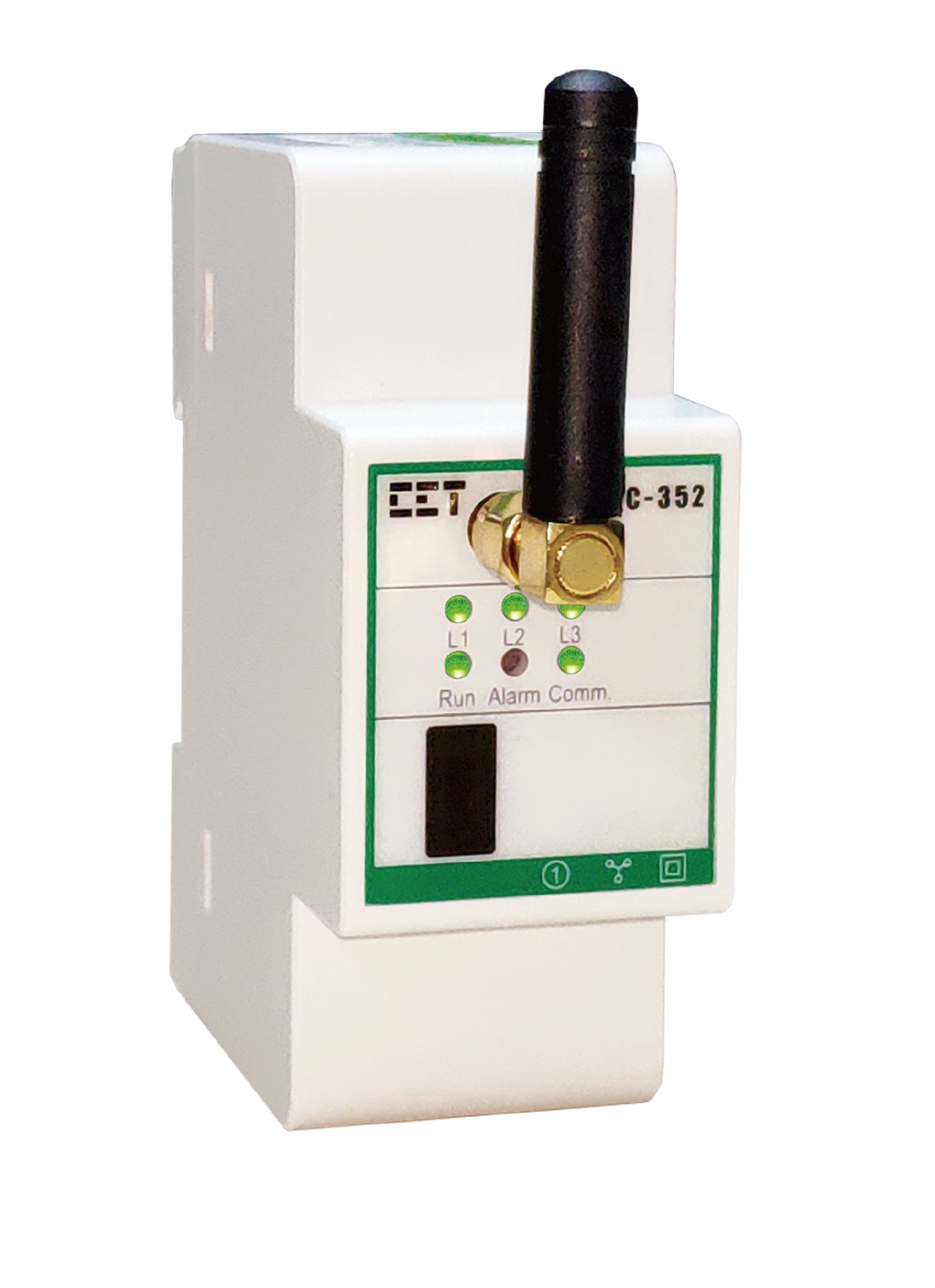

The PMC-352 3-Phase LoRa DIN Energy Meter is CET’s latest offer for the wireless loT energy monitoring market using the LoRa technology for its wireless communication capability. Designed in a compact DIN form factor measuring 36x65x90mm, it is perfect for energy and condition monitoring applications in space-limited power distribution board. The PMC-352 comes standard with 4xNTC Inputs for temperature monitoring and 3xDI for status monitoring. With standard RS-485 and optionally LoRa supporting the Modbus RTU protocol and IEC 62053-21 Class 1 compliance, the PMC-352 becomes a vital component of an intelligent, distributed and wireless loT based EMS or Condition Monitoring System.

Applications

  • Industrial, Commercial and Utility Substation Monitoring
  • Sub-metering and Cost Allocation
  • Wireless Energy & Condition Monitoring of Busbar or Machines
  • Building, Factory and Process Automation
  • Energy Management and Power Quality Monitoring
  • Production Line Energy Management Refinement

Features

  • Ease of use
  • Basic Measurements
  • Enhanced Measurements
  • Setpoints
  • SOE Log
  • Standard I/O
  • Diagnostics
  • Communications
  • System Integration
