- Power/Energy Monitoring for Data Centers’ PDUs
- Utility Substation Multi-Circuit Monitoring
- Power Quality Monitoring
- Maximum Demand Indicator

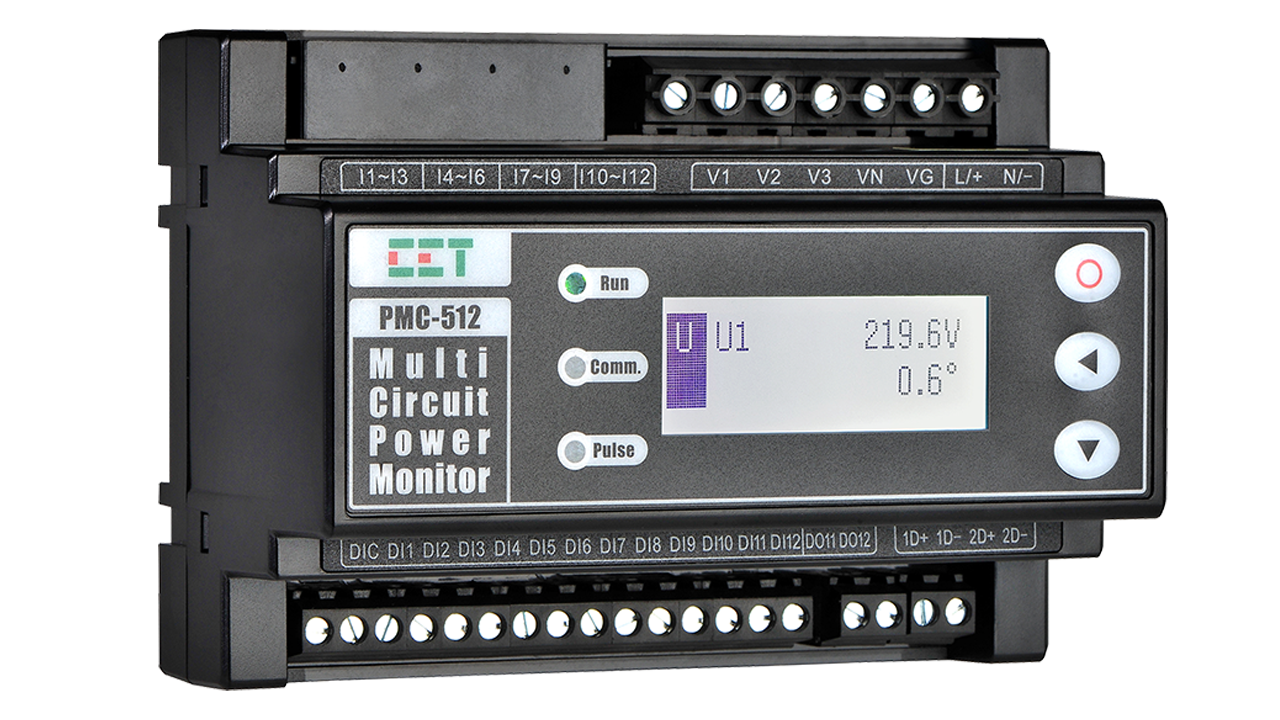

PMC-512-ALA325CE Multi-Circuit Power Monitor
PMC-512-ALA325CE Multi-Circuit Power Monitor | Modbus RTU
- Compact DIN Rail Mount enclosure for high-density metering applications
- Quality construction with multifunction and Class 1 Energy Measurements
- 12 x Digital Inputs (DIs) for status monitoring
- 1 x Digital Output (DO) for control or alarming
- Standard SOE Log records setup changes, alarms, and DI/DO operations with 1ms resolution
- Dual RS-485 ports as standard features supporting Modbus RTU
PMC-512-A is CET’s latest offer for the economical multi-circuit monitoring of Data Centers, Telecom Base Stations, Industrial & Commercial Buildings. Housed in a compact DIN Rail Mount enclosure, the PMC-512-A is perfectly suited for high-density metering applications. The PMC-512-A features quality construction with multifunction and Class 1 Energy Measurements. The PMC-512-A comes standard with a built-in LCD display, 12xDIs for status monitoring, 1xDO for control or alarming. The standard SOE Log records all setup changes, alarms and DI/DO operations in 1ms resolution. With dual RS-485 as standard feature supporting Modbus RTU, the PMC-512-A can easily be deployed in a stand-alone system with an optional 7″ touch-screen HMI that supports up to 32 devices over a RS-485 network, or simultaneously with a centralized monitoring and control system for an AC power distribution network.
Applications
Features
- Measurements
- Data Recording
- Demand Measurements
- Power Quality
- SOE
- Inputs & Outputs
- Communications
- Real-time Clock
