Modbus Gateway | ICDM-RX/MOD-2DB9/RJ45-DIN

  • DIN-rail mounting and DB9 connectors
  • Pure Modbus, multiple Modbus server and client types, remote, local, and private devices
  • Web-based configuration
  • RS-232/422/485 software selectable interfaces
  • NEMA TS2 Certified

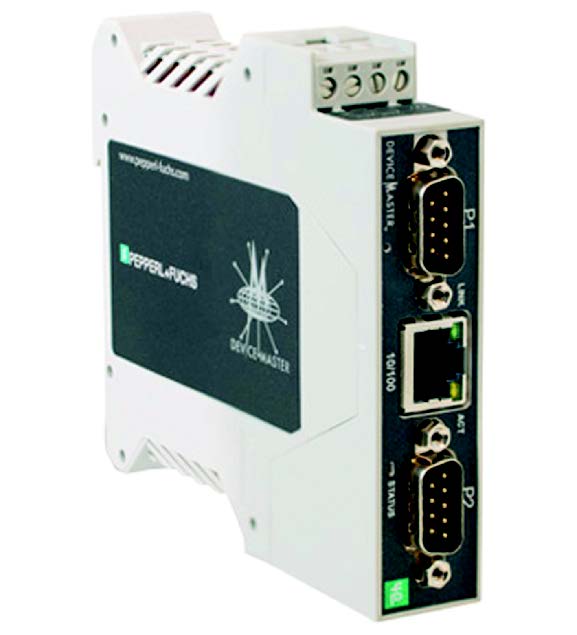

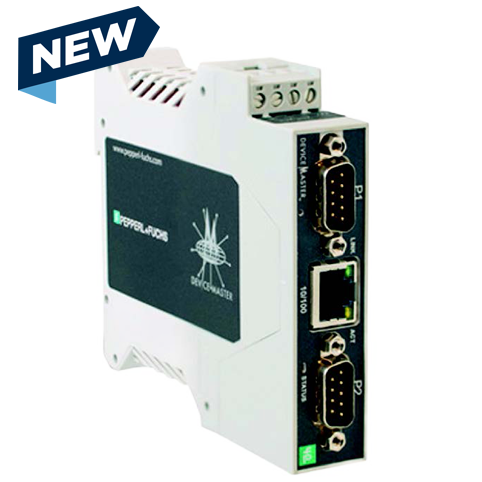

The ICDM-RX/MOD-2DB9/RJ45-DIN offers a streamlined, compact solution for integrating Modbus-enabled devices. With two DB9 serial ports and one RJ45 Ethernet port, it provides the same powerful firmware options and protocol flexibility as its 4-port counterpart, but in a slimmer form factor optimized for smaller installations.

Downloads

Datasheet

Features

  • Versatile Protocol Handling: Supports Modbus RTU, TCP/IP, ASCII.
  • Web-Based Configuration: Easily accessible management UI.
  • Flexible Port Configuration: Software selectable RS-232/422/485.
  • Compact Form: Ideal for space-limited panels.
  • Firmware Choices: Router, MQTT, TCP, and Server modes available.

Installation

  • DIN-Rail Mounting
  • Power Supply: 5–30 VDC, redundant power supported.
  • Interfaces: 2 x DB9 (serial), 1 x RJ45 (Ethernet)
  • Indicators: Status and Ethernet link/activity LEDs.

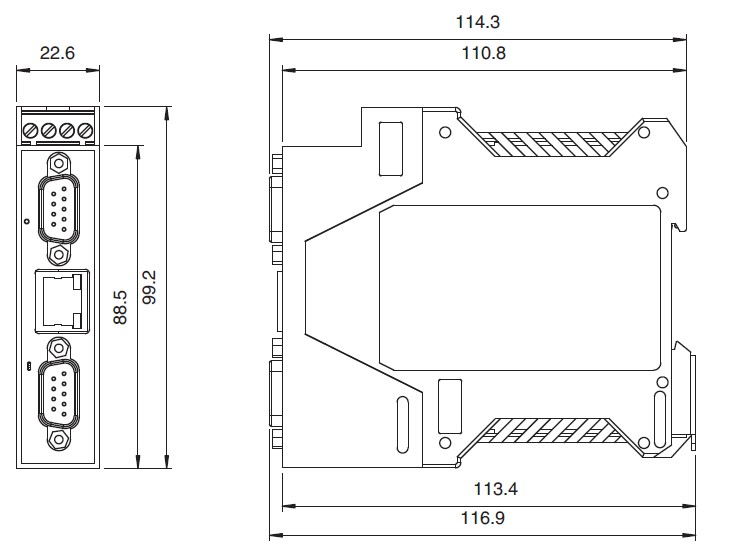

  • Dimensions: 116.9 mm (H) × 22.9 mm (W) × 99.2 mm (D).
