- DIN-Rail mount energy metering
- Industrial, Commercial and Utility Substation Metering
- Building, Factory and Process Automation
- Sub-metering and Cost Allocation
- NMI compliant Energy Management
PMC-340-A6 10A (100A)
-
Revenue-grade accuracy: Class 0.5 (direct 100A) and Class 0.5S (CT) for reliable cost allocation/billing.
-
True-RMS multifunction metering: Full three-phase electrical and energy measurements, per-phase and total.
-
Harmonics & PQ insight: THD plus harmonics up to the 31st, unbalance and distortion indicators.
-
Flexible install: Compact DIN-rail form factor; supports both direct-connect and CT wiring in one unit.
-
On-board logging & TOU: 16MB memory with trend recorders, max/min, 12-month history, and dual TOU schedules.
-
Easy integration: RS-485 Modbus RTU plus pulse output, digital input, alarms and event logging for BMS/EMS use.

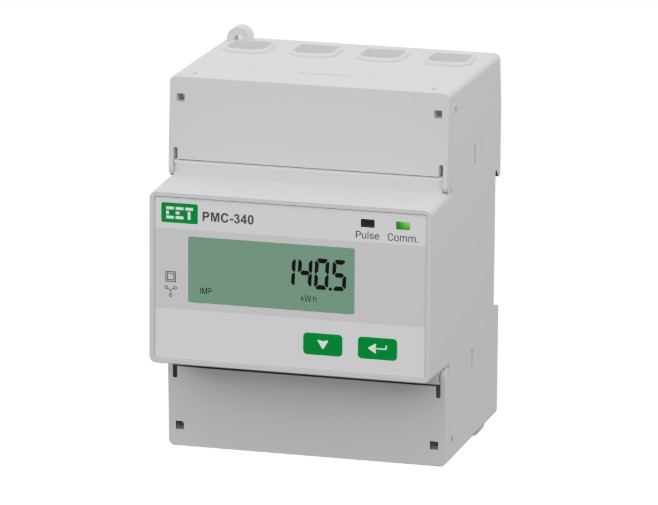

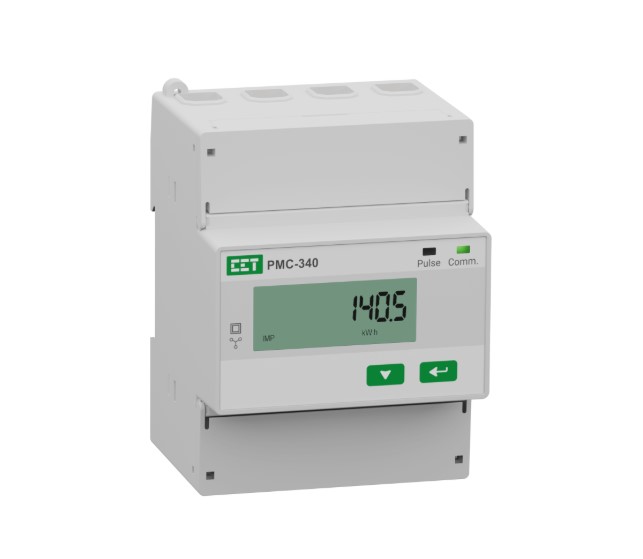

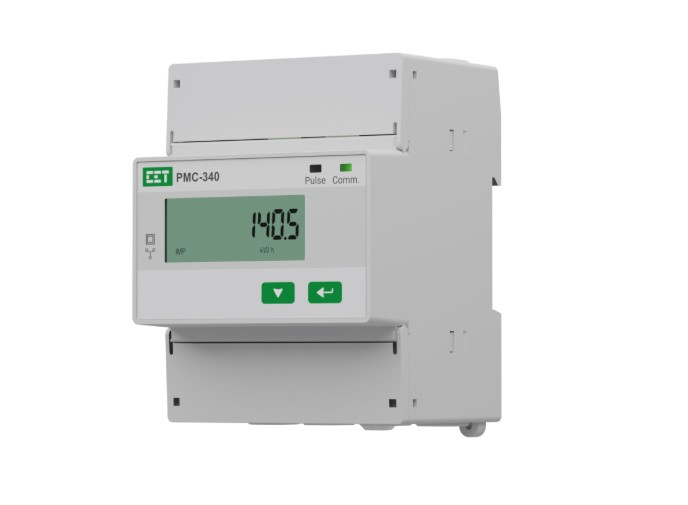

The PMC-340-A6 Digital Three-Phase Energy Meter is CET’s latest offer for the low voltage power/energy metering market featuring DIN-Rail mount, high accuracy, multifunction true RMS measurements and a large, easy to read LCD display. The PMC-340-A6 complies with the IEC 62053-21: 2020 & AS 62053.21: 2023 Class 0.5 for 100A Direct Connected Input and IEC 62053-22: 2020 & AS 62053.22: 2023 Class 0.5S for CT Input.
The PMC-340-A6 comes standard with a LED as well as a Solid State Pulse Output for energy pulsing. The PMC-340-A6 provides 16MB on-board non-volatile memory for Data Recording and 1xDigital Input for status monitoring and pulse counting for collecting WAGES (Water, Air, Gas, Electric and Steam) information. The standard RS-485 port and Modbus protocol support allows the PMC-340-A6 to become a vital component of an intelligent, multifunction monitoring solution for any Power and Energy Management Systems.
Applications
Features
- Ease of use
- Basic Measurements
- Digital Inputs
- Pulse Outputs
- Communications
- Real-time Clock
- System Integration
