XH-KCT Series

  • Operating Temperature: –25°C to +55°C, 85% RH
  • Frequency Range: 50/60 Hz
  • Linearity Range: 5%–120% In
  • Withstand Voltage: 3kV, 1mA for 60 seconds
  • Ingress Protection: IP23
  • Certification: CE (EN 61869-1:2009, EN 61869-2:2012), RoHS
  • Secondary Output: 5A or 1A standard across all models

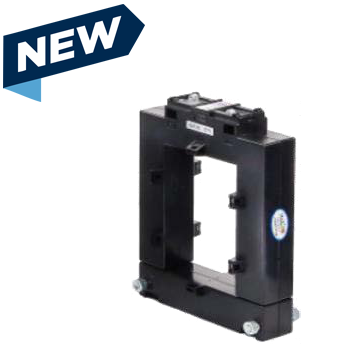

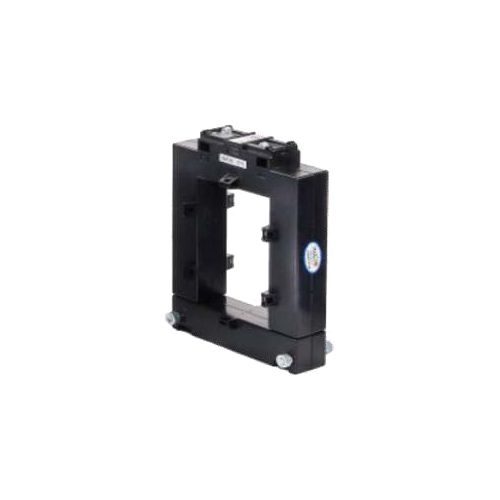

The XH-KCT Series is CET’s robust range of solid-core current transformers (CTs) designed for high-current measurement applications across industrial, utility, and commercial energy systems. Supporting primary currents up to 5000A, this series delivers high-accuracy Class 0.5 or Class 1 performance, with excellent mechanical durability and electrical insulation.

The series includes multiple models, each tailored to different current ranges and sizes, all rated to operate safely and reliably under IEC 61869-1/2:2012, CE, and RoHS standards.

Downloads

Data Sheet

Applications

  • High-current industrial load monitoring
  • Utility and grid infrastructure
  • Large-scale commercial energy management
  • Panelboard and switchgear current sensing
