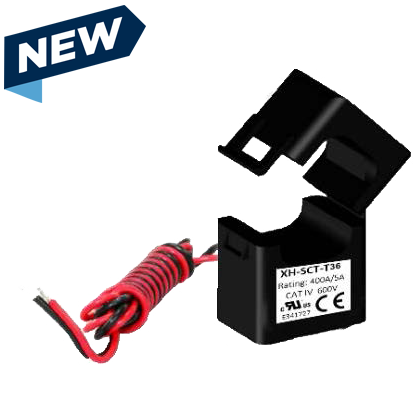

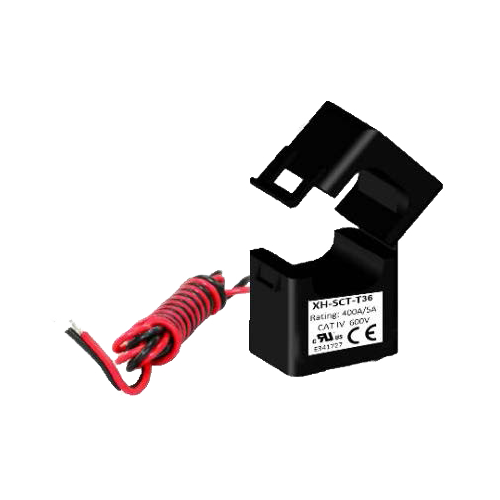

XH-SCT-T36 Series

  • Operating Temp: –25°C to +55°C, 85% RH
  • Frequency Range: 50/60 Hz
  • Linearity: 5%–120% In (rated current)
  • Withstand Voltage: 3kV at 1mA for 60 seconds
  • Flame Rating: UL 94-V0 (self-extinguishing material)
  • Output Cable: BVR 1m, 2.5 mm²
  • Certifications: CE (EN 61326-1:2013), UL (ANSI/IEEE C57.13), RoHS

The XH-SCT-T36 Series offers medium-range split-core current transformers (SCCTs) designed for accurate and safe current measurement in energy monitoring, industrial control, and sub-metering applications. Covering a current range from 200A to 600A, the T36 series combines Class 1 and Class 0.5 accuracy, robust build quality, and easy installation in compact spaces.

Compliant with IEC 61869, and certified for CE, UL, and RoHS, these transformers ensure both performance and safety for integration into commercial or industrial energy systems.

Downloads

Data Sheet

Applications

  • Energy management in industrial panels
  • Commercial sub-metering
  • Load current sensing in BMS/EMS
  • Retrofit power monitoring systems

📩 Contact Sales

📞 Customer Support: +61 7 3535 9600
