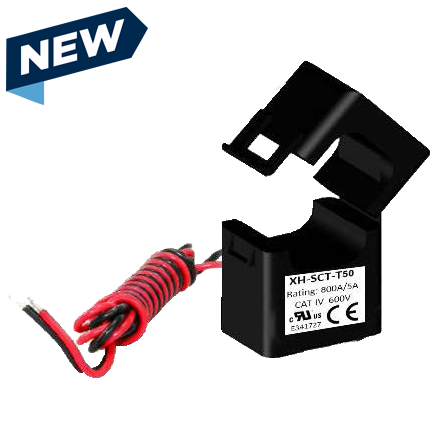

XH-SCT-T50 Series

  • Wide Operating Range: –25°C to +55°C, 85% RH
  • Frequency: 50/60 Hz
  • Linearity: 5%–120% of rated current (In)
  • Withstand Voltage: 3kV, 1mA for 60s
  • Flame Rating: UL 94-V0 (self-extinguishing)
  • Output Cable: BVR 1m, 2.5 mm²
  • Certifications: CE (EN 61326-1:2013), UL (ANSI/IEEE C57.13), RoHS

The XH-SCT-T50 Series is a line of split-core current transformers (SCCTs) designed for non-intrusive, accurate current measurement in energy metering, monitoring, and sub-metering applications. With a wide linearity range (5%–120% In) and a compact, easy-to-install design, it is ideal for retrofitting into existing electrical systems without disrupting power.

Each model in the series complies with IEC 61869 standards for accuracy and is tested to withstand 3kV dielectric voltage for enhanced safety. The SCCTs are CE, UL, and RoHS certified, making them suitable for both industrial and commercial applications.

Downloads

Data Sheet

Applications

  • Energy monitoring & load analysis
  • Retrofit sub-metering solutions
  • Building management systems (BMS)
  • Panel metering and energy audits

📩 Contact Sales

📞 Customer Support: +61 7 3535 9600
