- PQ monitoring at HV, MV and LV Utility Substations
- Data Centers, Semiconductor Fabs, Heavy Industries
- 7×24 Automated Manufacturing Facilities
- Dips, Swells, Interruptions, Transients, Flickers and Harmonics Monitoring
- Mains and Critical Feeder Monitoring
- IEC 61850 support for Substation Automation and Smart Grid
- Retrofit applications with Split-Core Current Probe (SCCP)

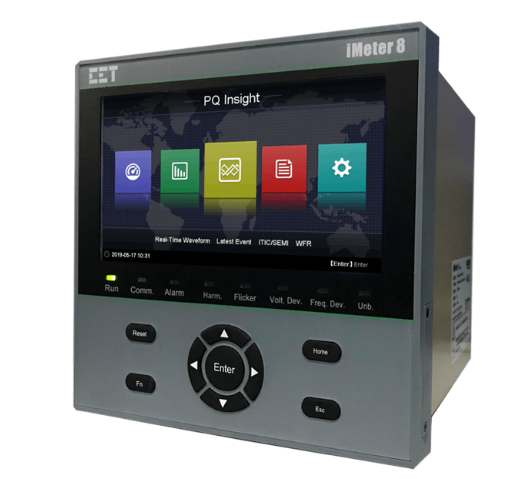

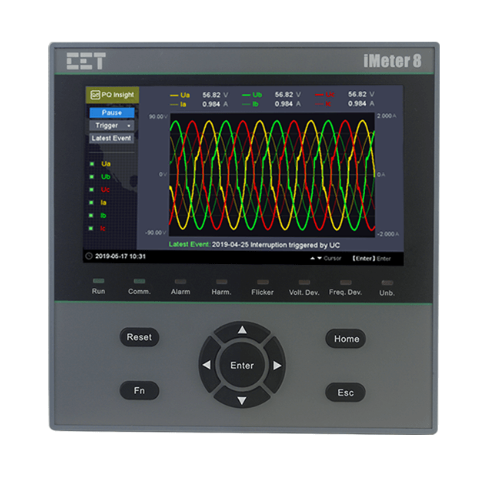

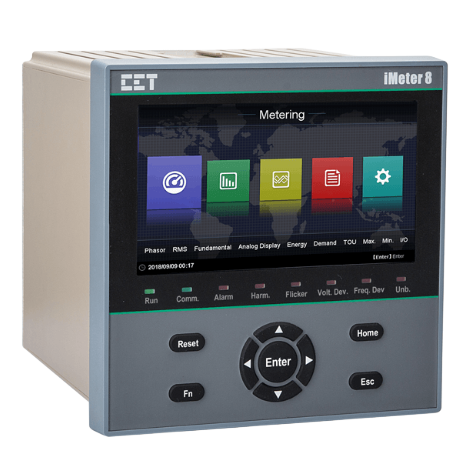

iMeter 8 | Advanced Power Quality Analyzer
- True RMS @1024 Samples/Cycle
- IEC 62053-22 Class 0.2S Compliant
- IEC 61000-4-30 Ed. 3.1 Class A Certified
- IEC 61000-4-15 Flickermeter
- PQ Disturbance Detection
- Disturbance Waveform Recording
- Comprehensive SDR and Energy Logs
- Dual Ethernet and 2xRS-485
- Modbus RTU/TCP, HTTPS, SNTP, SMTPS
- 7” TFT Color Dot-Matrix LCD Display
- 8GB Log Memory
iMeter 8 is CET’s Advanced PQ Analyzer designed for the compliance monitoring market as it offers un-surpassed functionality by combining Class 0.2S accuracy and advanced PQ features in a 192x192x182.4mm housing with a High-Resolution, Color Dot-Matrix LCD display. The iMeter 8 complies with such standards as IEC62053-22 Class 0.2S, IEC61000-4-30 Ed. 3.1 Class A, IEC61000-4-15, IEC61000-4-7, EN50160, IEEE Std 519-2022 as well as IEC61850 for Substation Automation. Further, it offers a large logging capacity with 8GB of on-board memory, extensive I/O, multiple Time Sync. methods, 2x100BaseT Ethernet and 2xRS-485 ports. In addition, it optionally provides 2xAO and 2xAI for different applications. These features likely make the iMeter 8 one of the most advanced PQ Analyzer for an intelligent Power Quality Monitoring System.
Applications
Features
- Ease of use, Basic Measurements
- High-Speed Measurements
- Display & Web Servers
- Power Quality Metering
- Multi-Tariff TOU Capability
- Power Quality Metering
- Data & Event Recorders
- Time Synchronization
- Setpoints
- Inputs and Outputs
- Communications – Ethernet Ports (P1, P2), RS-485
- System Integrations
